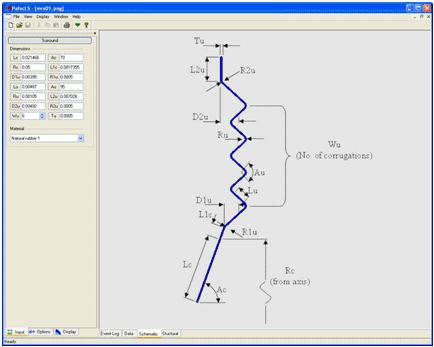

Parameters for the large displacement suspension components templates are entered in the same manner as for the loudspeaker templates. The 'Design Panel', which is the left hand pane shown in the diagram opposite, has the following three tabs:
|

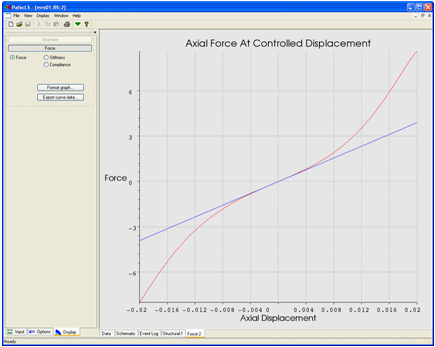

Force v Axial Displacement graph |

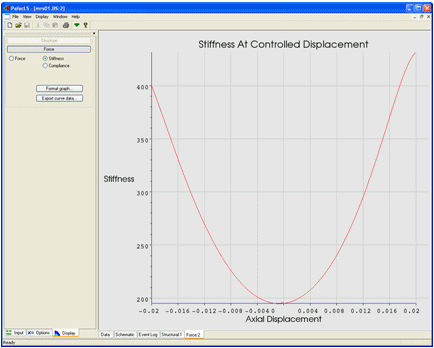

Stiffness v Axial Displacement graph |
Compliance v Axial Displacement graph |
|
