PAFEC-VibroAcoustics - Architectural - Analysis of a small room

From the graphs it can be seen that in both the high and low floor aborbency analyses there is a resonant frequency at approximately 52Hz. Note, the 1,1,0 mode of a 6m x 4m x 2.5m cuboid room is 51.79Hz.

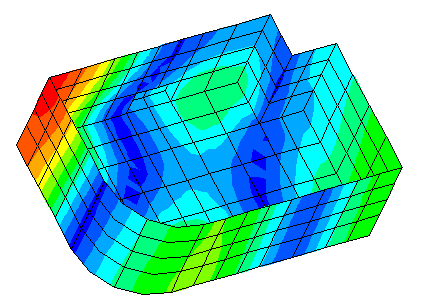

Pressure amplitude contours at 52Hz. for the higher absorbency analysis

Shaded contours

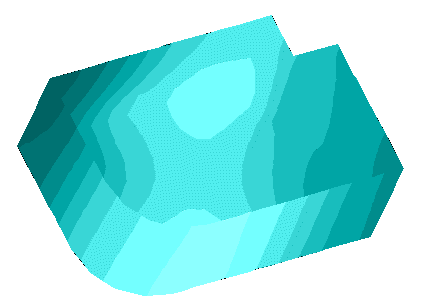

Animated contours
