PAFEC-VibroAcoustics - Architectural - Analysis of a small room

The graphs also indicate a resonant frequency at approximately 81Hz, in both the high and low floor aborbency analyses. Note, the 0,1,1 mode of a 6m x 4m x 2.5m cuboid room is 80.19Hz.

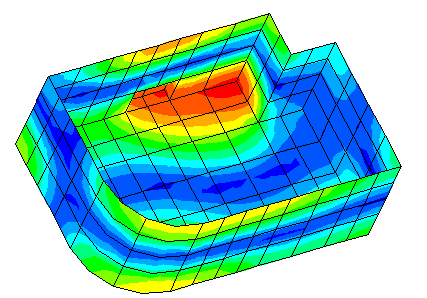

Pressure amplitude contours at 81Hz. for the higher absorbency analysis

Shaded contours

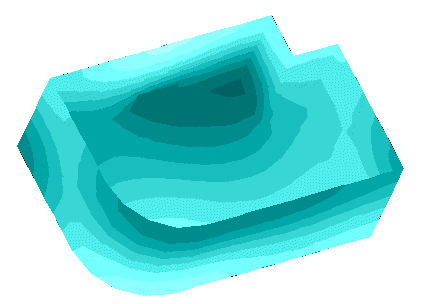

Animated contours
